Fiber Laser Pipe Cutting Machine
The system blends beam – modulation technology to automatically match material thickness with the power and speed of a rotary index to efficiently transition of tube or pipe cutting.
The system’s ability to process round, square, rectangle, C-channel and angle iron provides users with extreme versatility.
Metal Pipe Fiber Laser Cutting Machine is an example of high-tech flexibility 3D Axis cutting.
| ITEM | SPECIFICATIONS |
|---|---|
| Laser Source | IPG / RAYCUS / MAX / JPT |
| Travel Method | X, Y, and Z – Axis movement for Cutting Head |
| Control Method | X, Y and Z (Simultaneous 3 – Axis Control) |
| Drive Motors | Yaskawa or Panasonic AC Servo Motors |
| Max. Axis Positioning Speed (X, Y) | 80 m/min. per Axis (>120 m / min – 45 degree) |
| Laser Power (Watt) | 1 – 6 KW |
| Maximum Diameter | 400 mm |
| Pipe Cutting Y axis | 6000 mm |
| X, Y Axis Positioning Accuracy | ≤±0.03 mm |
| Repositioning Accuracy | ≤±0.05 mm |
| Power Supply | 380/50 V/Hz, 3-Phase |
| Machine Control | FSCut |
| Machine Weight | 8000 Kg |

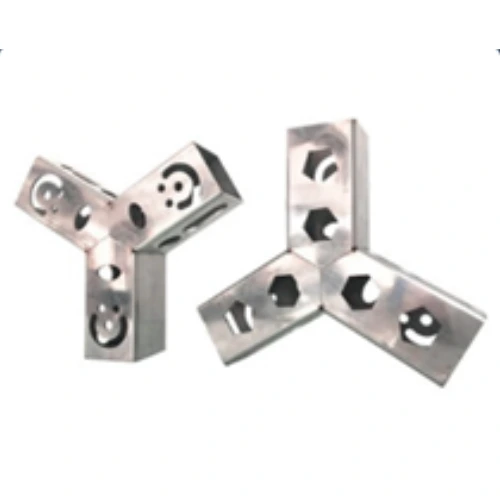

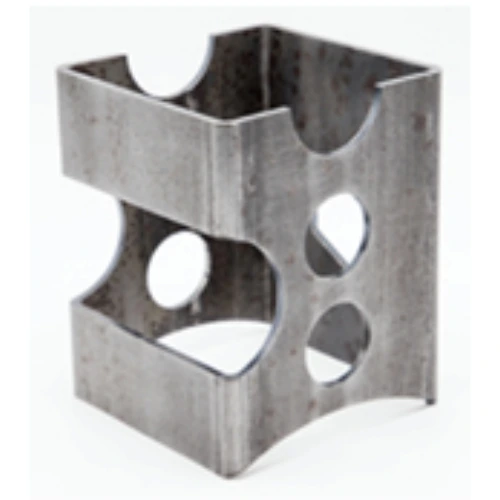

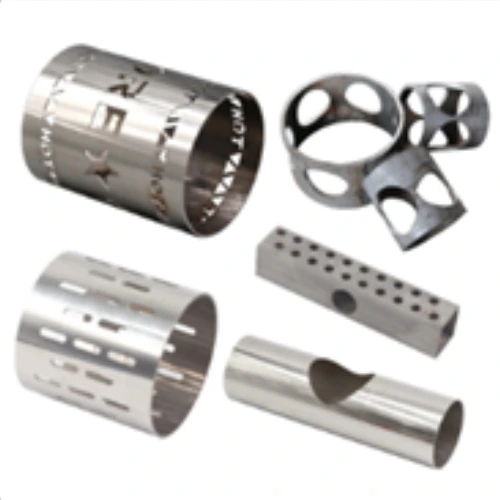

Samples
