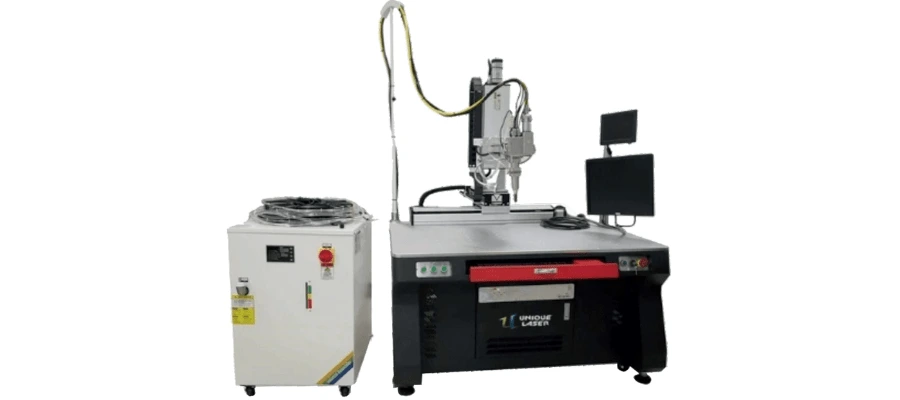

4 AXIS Fiber Laser Welding Machine

Fast speed, small deformaon, large depth, beauful welding seam and less consumables.
The dedicated welding control system has high stability and is easy to understand and learn. It can realize connuous welding points,
straight lines, circles, arcs, etc., and can be programmed arbitrarily.
The electric translaon stage is adopted, with high repeat posioning accuracy, fast welding speed and Fast processing speed.

Used in the welding of stainless steel, tanium steel, aluminium alloy, copper, galvanized sheet and other materials used in
electronic appliances, confidenal parts, automobiles household appliances, tool processing and other industries.

DEVICE / MODEL	1500W	2000W	3000W
Laser Wavelength	1080 (+10) nm
Output Fiber Length	10M
Max Laser Power	1500W	2000W	3000W
Rated Power	7KW	8KW	11KW
Supply Voltage (V)	220V / 50HZ	220V / 50HZ	380V / 50HZ
Spot Adjustment Range	0.1–5mm	0.1–5mm	0.1–5mm
Laser Frequency	1–10000HZ	1–10000HZ	1–10000HZ
Cooling System	HC1500	HC2000	HC3000
Observing System	CCD or Red Light
WORKBENCH PARAMETERS
Stroke of XYZ	500X300X300mm / 900X500X400mm
Position Accuracy	0.05mm
Repeat Accuracy	0.05mm
Max Movement Speed	200mm/S
Size of Workbench	1300mm X 1000mm / 1600mm X 1200
Accessories	Servo, Motor, Axis of Rotation, Extended Stroke
