Fiber Laser Marking Machine

High-speed, permanent marking for metals.

Key Features

Fast speed, high efficiency, stable output power, high reliability.
Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition
Applicable on materials like metal, non-metal, plastics, etc.,
Permanent Marking Processing / Online- Marking Process
Minimize damage to the product and enhance the quality
High speed marking for mass production
It can mark all sorts of precise patterns according to customer requirements
With international high-quality fiber laser, it can mark all sorts of precise patterns according to customer requirements
High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour

Specification

SPECS/MODEL	FL 10/20/30/50/60/100
Power	20 W to 100 W
Wavelength	1064 ±3 nm
Beam Quality	<1.2 (M2)
Pulse Repetition Rate	20 – 400KHz
Power Stability	<±1%
Focus Spot Diameter	<0.05mm
Working Area	70 X 70/100 X100/150 X 150/ 200 X 200/300 X 300 mm
Max marking Depth	1.2mm
Max marking speed	1500 standard characters / second
Minimum Line Width	0.05mm
Minimum Character	0.05mm
Repetition Accuracy	±0.003 mm
Cooling Mode	Air cooling
Ambient Temperature	15 °C – 35 °C
Power Requirement	220V/single phase/50Hz/<600W
Life of Laser Module	> 100000Hrs
Guide Laser/Red Aiming Beam	Yes 660nm

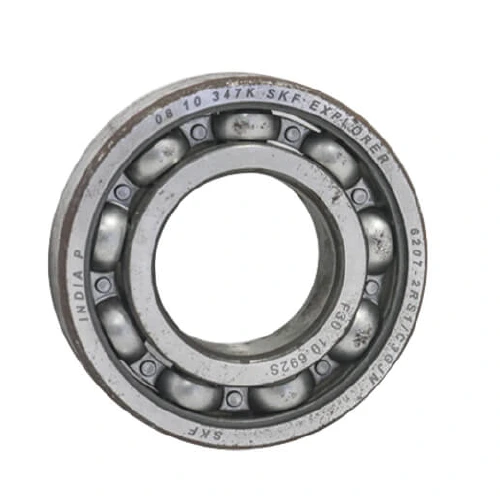

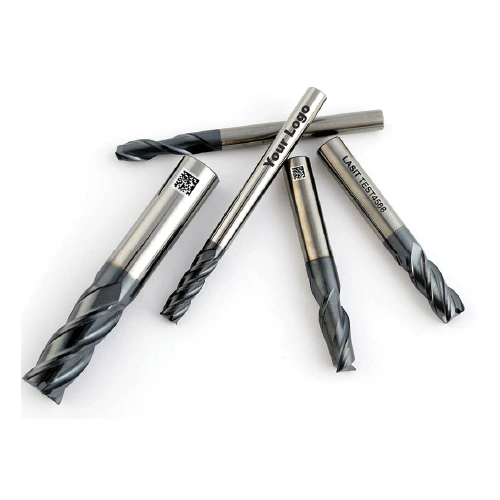

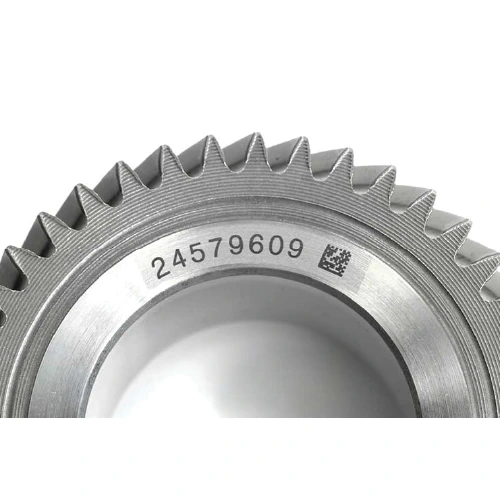

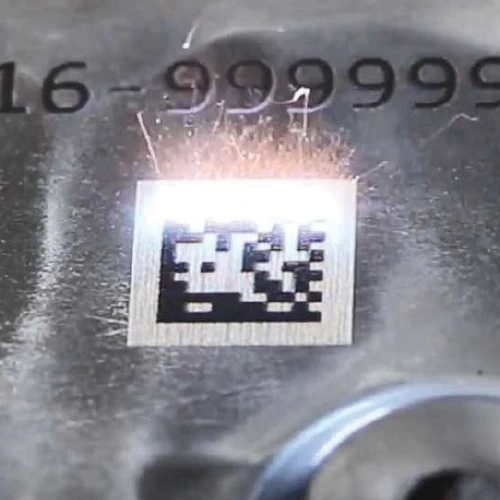

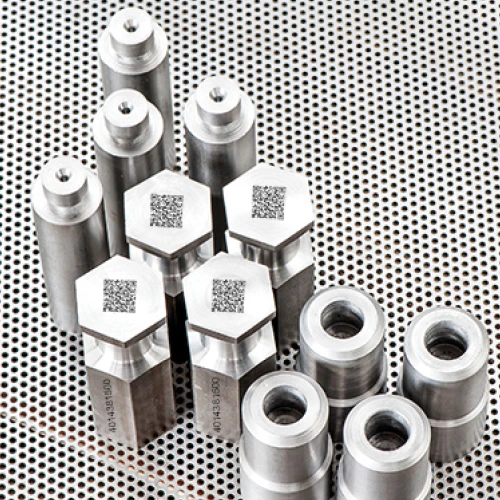

Samples

Frequently Asked Questions

What is a Fiber Laser Marking Machine used for?

A Fiber Laser Marking Machine is used for permanent marking and engraving of text, logos, barcodes, and designs on metal and selected non-metal materials with high precision and speed.

What is the difference between a fiber laser marking engraving machine and a fiber laser engraving machine for metal?

A fiber laser marking engraving machine is used for surface marking and light engraving, while a fiber laser engraving machine for metal is designed for deeper engraving on materials like stainless steel, aluminum, brass, and copper.

What are the advantages of a fiber laser marking machine for metal?

A fiber laser marking machine for metal provides high contrast, permanent marks, minimal heat impact, fast processing speed, and excellent accuracy, making it ideal for industrial metal marking applications.

What is a desktop fiber laser marking machine best suited for?

A desktop fiber laser marking machine is compact and ideal for small workshops, laboratories, jewelry marking, tool engraving, and low-to-medium production environments.

What industries use fiber laser engraving machines for metal?

Industries using fiber laser engraving machines for metal include automotive, electronics, medical devices, hardware tools, jewelry, aerospace, and precision manufacturing.

What industries use fiber laser engraving machines for metal?

Industries using fiber laser engraving machines for metal include automotive, electronics, medical devices, hardware tools, jewelry, aerospace, and precision manufacturing.
