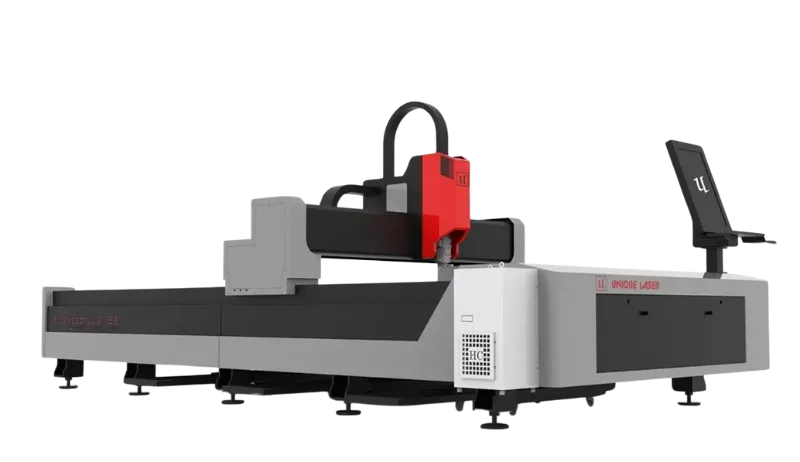

Fiber Laser UL 3015 Lite Series

Fiber Laser UL 3015 Lite Series

Features

  • Durable Rack-and-Pinion motion system.
  • Back panel with Climate Control AC for electronics.
  • Top drag chain concept making machine compact and more safe.
  • Light weight Gantry for high dynamics with synchronized dual servo motors.
  • Isolated HV protected control panel specially build
  • To work in unfavorable electrical conditions.
  • Auto Focus Cutting Head.
  • Machine dynamics 200 holes / min.
  • Fireproof bellow for safety.
  • Dust proof gas line for gas flow

Materials to Cut

  • Stainless Steel
  • Carbon Steel
  • Aluminium
  • Mild steel
  • Brass
ITEM SPECIFICATIONS
Laser Source IPG / RAYCUS / MAX / JPT
Working Area 3000 x 1500 / 4000 x 2000 / 6000 x 2000
Drive Motors Yaskawa or Panasonic AC Servo Motors
Cutting Head Raytools Auto-Focus
Z Axis 150 mm
Z Axis with Dual Pallet 250 mm
LM Rails X, Y HIWIN
Chiller UL OEM
CNC Controller FSCut
Rack & Pinion YYC
Electronic Pressure Regulator SMC
Gas Line & Filter SMC
Gearbox YYC
Acceleration 1.0 G
Position Accuracy ≤ ± 0.05 mm / m
Repositioning Accuracy ≤ ± 0.03 mm
Maximum Rapid Speed 80 meters / min
Cutting Speed 20 meters / min

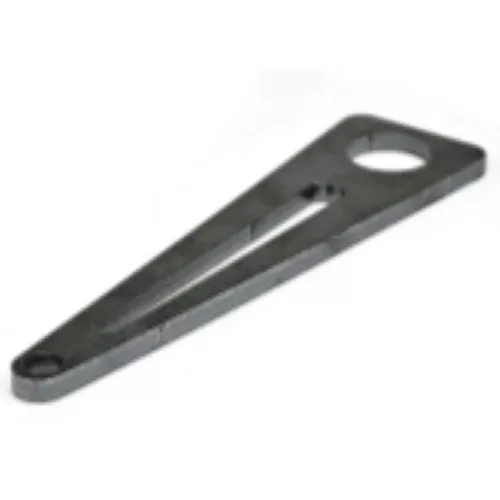

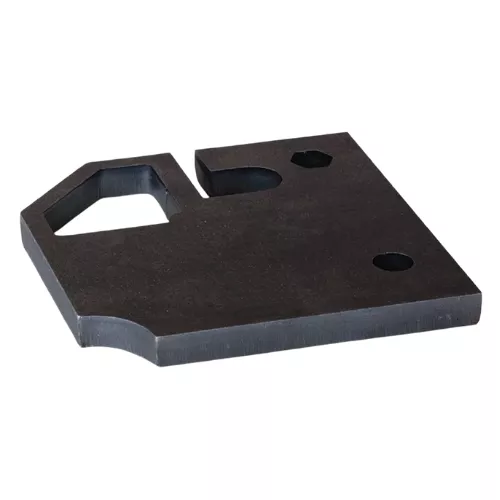

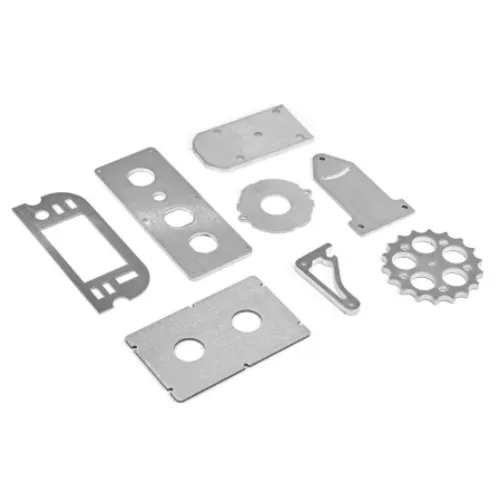

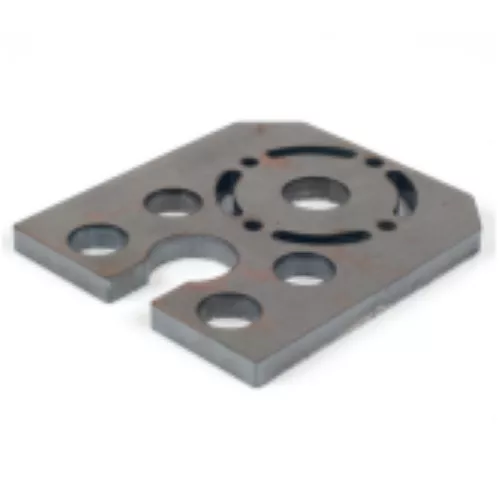

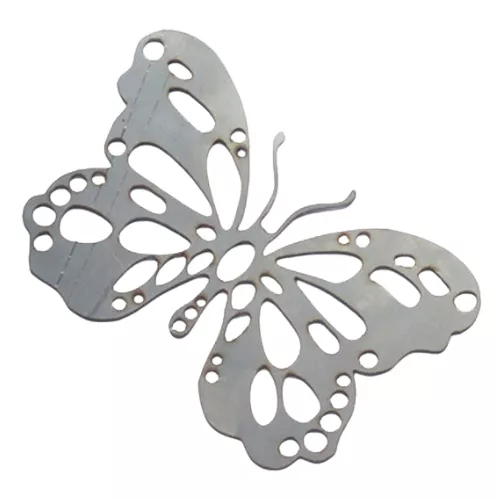

Samples
